This Small Diameter Lug Nut Key fits most 7-Spline Tuner Style lug nuts available from various manufacturers. Please confirm the lug nut key measurements listed here to be sure your lug nuts are the same size. Dual head design fits most factory lug wrenches. Cold forged, heat treated, hardened steel construction Extended length keeps your lug wrench away from your wheels to prevent scratches. Easily & safely removes your tuner lug nuts. Thin wall design matches your wheel lock diameter to prevent scratching your wheels Dual hex head accepts 3/4" and 13/16" sockets 7-Spline
Fits Medium 7-Spline Lug Nuts & Lug Bolts
Color~BlackDrive~3/4" (19mm)||13/16" (21mm)End Type~7-Splined (Female)Finish~Matte BlackFitment~Fits medium 7-Spline Lug Nuts with symmetrical (evenly spaced) external splines.Head~Dual HexInside Diameter~0.69" (11/16", 17.5mm)Length~3.5" (3-1/2", 89mm)Material~Hardened SteelOutside Diameter~0.825" (53/64", 20.96mm)Pattern~Symmetrical (Evenly Spaced)Quantity~Sold IndividuallySize~MediumThickness~0.05" (1/16", 1.3mm)(Wall)Warranty~NoneNote~Fits all standard (non-registered) 7-Spline Tuner Lug Nuts with symmetrical (evenly spaced) splines (excludes Small or Duplex (large) Style)
Notice ! Wheel lock keys are hand tools and are not intended for use with air tools or other power tools.
Alert ! Purchase and/or use of this item is intended for legitimate automotive service businesses or other authorized users only. Brandsport LLC assumes no liability or responsibility for the use of this product.
Fits Medium 7-Spline Lug Nuts & Lug Bolts
Helpful Tip!

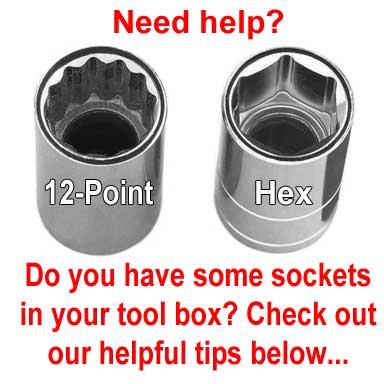

If you have a few sockets in your tool box, try this. To our knowledge, there are only three sizes of 7-Spline nuts (with symmetrical or evenly spaced splines). If the smallest socket you can fit over your 7-spline nut is either 17mm or 11/16" (either Hex or 12-point), then you need this key. If you can fit any smaller socket over your 7-spline nut, then you need the Small 7-Spline Key. If the smallest socket you can fit over your 7-spline nut is either 3/4" 12-point or 19mm, 13/16" (either Hex or 12-point), then you need the Large 7-Spline Key.- Color
- Black
- Drive
- 3/4" (19mm)||13/16" (21mm)
- End Type
- 7-Splined (Female)
- Finish
- Matte Black
- Fitment
- Fits medium 7-Spline Lug Nuts with symmetrical (evenly spaced) external splines.
- Head
- Dual Hex
- Inside Diameter
- 0.69" (11/16", 17.5mm)
- Length
- 3.5" (3-1/2", 89mm)
- Material
- Hardened Steel
- Outside Diameter
- 0.825" (53/64", 20.96mm)
- Pattern
- Symmetrical (Evenly Spaced)
- Quantity
- Sold Individually
- Size
- Medium
- Thickness
- 0.05" (1/16", 1.3mm)(Wall)
- Warranty
- None
- Note
- Fits all standard (non-registered) 7-Spline Tuner Lug Nuts with symmetrical (evenly spaced) splines (excludes Small or Duplex (large) Style)
