This 5 Spline Lug Nut Key fits the larger of the two 5-Spline Tuner Style lug nuts available from various manufacturers. Over the years, the automotive industry has created two different lug nuts with 5 symmetrical (evenly spaced) splines around the outside of the lug nut. Please confirm the wheel lock key measurements listed here to be sure your 5 spline lug nuts are the same size. This key is manufactured from cold forged, heat treated, hardened steel and features a dual head 3/4" and 13/16" design to fit most factory lug wrenches. In addition, the thin wall design matches the outside diameter of your 5-spline wheel locks to prevent scratching your wheels. 5-Spline
13/16" I.D., Fits 5-Spline Lug Nuts & Lug Bolts
Color~ChromeDrive~3/4" (19mm)||13/16" (21mm)End Type~5-Splined (Female)Finish~Chrome Plated (High luster)Fitment~Fits 5-Spline Lug Nuts with symmetrical (evenly spaced) external splines.Head~Dual HexInside Diameter~0.82" (13/16", 20.8mm)Length~1.7" (1-11/16", 43.2mm)Material~Hardened SteelOutside Diameter~1.03" (1-1/32", 26.16mm)Pattern~Symmetrical (Evenly Spaced)Quantity~Sold IndividuallySize~SmallThickness~0.12" (1/8", 3.2mm)(Wall)Warranty~NoneNote~Fits standard 5-Spline Small Diameter Lug Nuts with symmetrical (evenly spaced) splines (excludes small 5/8" style)
Currently on Backorder
ETA: NoneNotice ! Wheel lock keys are hand tools and are not intended for use with air tools or other power tools.
Alert ! Purchase and/or use of this item is intended for legitimate automotive service businesses or other authorized users only. Brandsport LLC assumes no liability or responsibility for the use of this product.
13/16" I.D., Fits 5-Spline Lug Nuts & Lug Bolts
Helpful Tip!

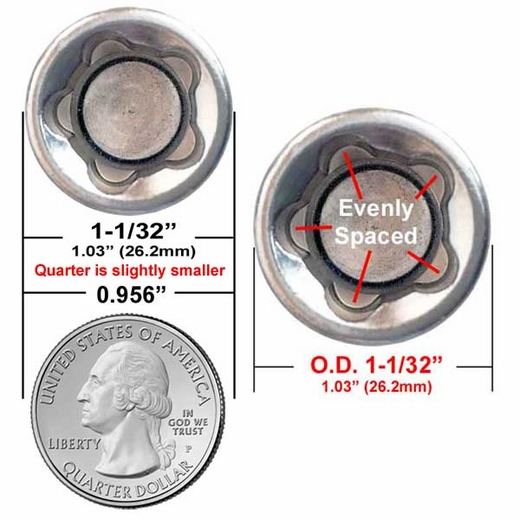

If you have a few sockets in your tool box, try this. To our knowledge, there are only two sizes of 5-Spline nuts (with symmetrical or evenly spaced splines). If the smallest socket you can fit over your splined nut is 3/4" or 19mm (either Hex or 12-point) then this should be the right key. If the smallest socket you can fit over your 5-spline nut is smaller than either 3/4" or 19mm (either Hex or 12-point), then you need the small 5-spline key which is no longer available to us.- Color
- Chrome
- Drive
- 3/4" (19mm)||13/16" (21mm)
- End Type
- 5-Splined (Female)
- Finish
- Chrome Plated (High luster)
- Fitment
- Fits 5-Spline Lug Nuts with symmetrical (evenly spaced) external splines.
- Head
- Dual Hex
- Inside Diameter
- 0.82" (13/16", 20.8mm)
- Length
- 1.7" (1-11/16", 43.2mm)
- Material
- Hardened Steel
- Outside Diameter
- 1.03" (1-1/32", 26.16mm)
- Pattern
- Symmetrical (Evenly Spaced)
- Quantity
- Sold Individually
- Size
- Small
- Thickness
- 0.12" (1/8", 3.2mm)(Wall)
- Warranty
- None
- Note
- Fits standard 5-Spline Small Diameter Lug Nuts with symmetrical (evenly spaced) splines (excludes small 5/8" style)
